Description
Brand new aftermarket Stator + Flywheel + Mosfet Regulator + Gasket + Connectors Kit
- Crankcase cover gasket included
- Connector kit included
- All products are tested
- All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
Brand new Magneto Flywheel Rotor
Introducing our newest Heavy Duty Flywheel Rotor For Yamaha Motorcycles
Anyone who rides or repairs a Yamaha YZF R1, FZ1 or FZ8 is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.
A Heavy Duty Flywheel to the rescue!
New RMSTATOR heavy-duty flywheel rotor for Yamaha Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.
Features
-
Built to OEM size
Fits precisely in your ride: install it and forget it. -
Improved epoxy
Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment. - This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Specifications:
Stator Dimensions :
- Interior diameter : 18 mm
- Exterior diameter : 68 mm
- Thickness : 42 mm
- Length of wires stator to grommet : 125 mm
- Length of wires grommet to plug : 500 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +/-20%

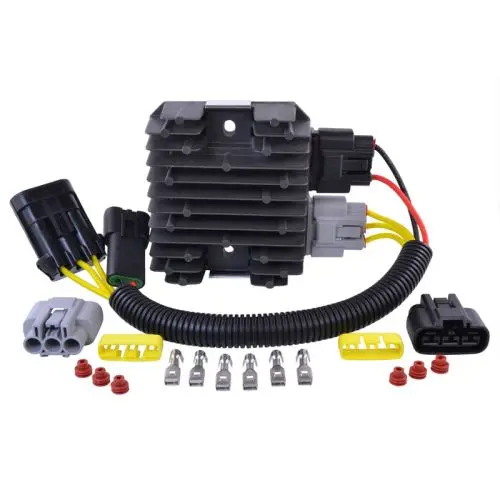

Mosfet Regulator Dimensions :
- Width: 103 mm
- Length: 103 mm
- Height: 28 mm
- Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?
Flywheel Dimensions :
Exterior Diameter: 80 mm
Interior Diameter: 69 mm
Interior Diameter Center Housing: 12 mm
Exterior Diameter Center Housing: 18 mm
Thickness (exterior): 11 mm
Thickness (interior): 6 mm
Diameter of the Shaft largest to the narrowest:
- 26 mm
- 20 mm
- 18 mm
- 15 mm
Warning:
Battery condition is extremely important. No stator or regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced
