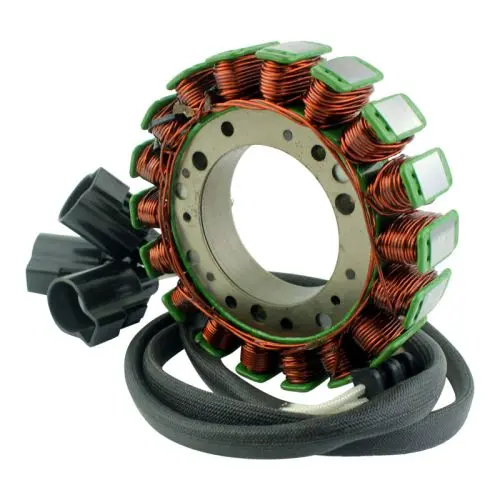

RMS Stator Assembly for Ducati Motorcycles

Description

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 19 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 190 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Fitment notice:

Please take note : There are 2 possible stators for Ducati Multistrada 2003-2006. This stator has an outside diameter of 115 mm, an inner diameter of 54 mm and a stack height of 19 mm.

Before buying, please compare your origina
